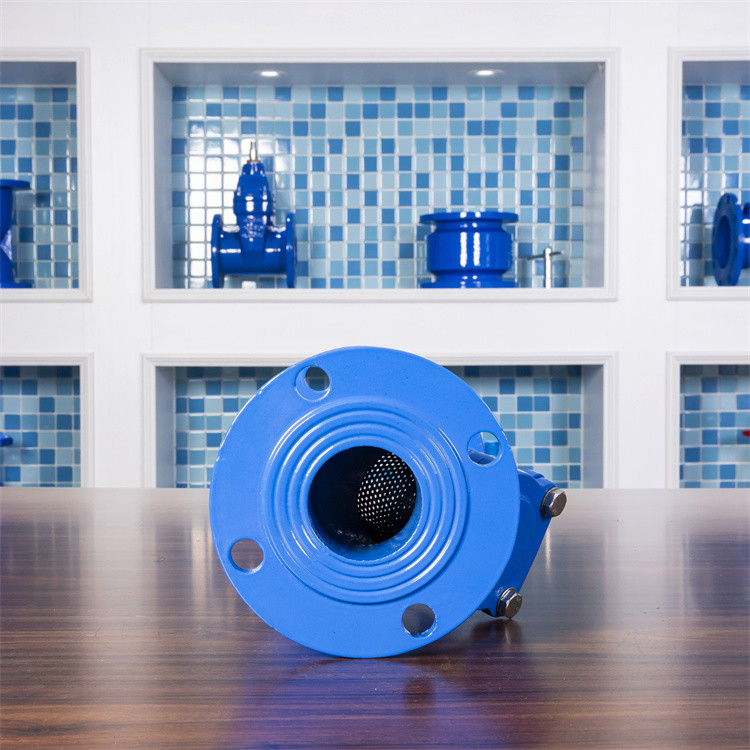

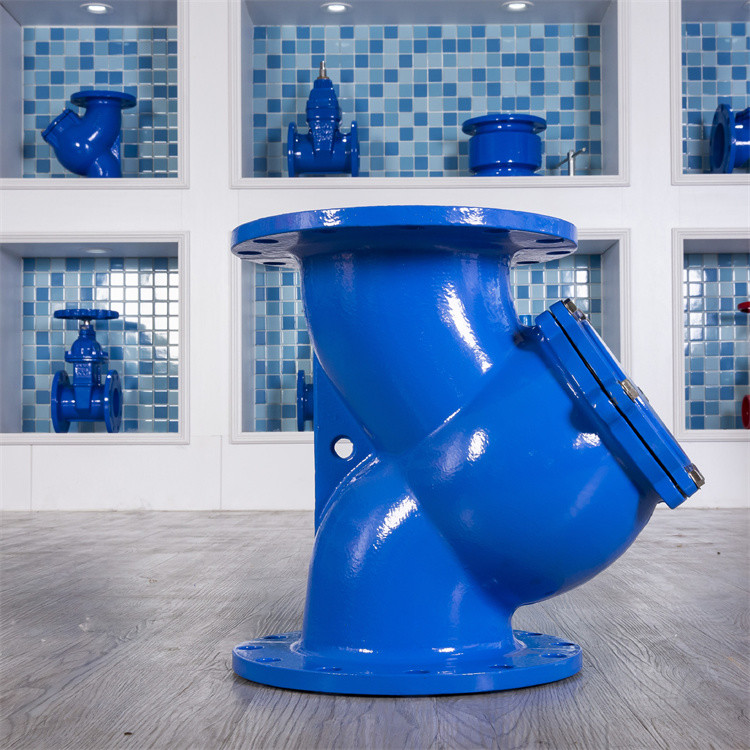

PN16 DN80 GGG50 Flange Type Ductile Cast Iron Valve Strainer Water Meter Front Filter Tank

product description

Purpose
This product is mainly set on various water supply and drainage or steam and gas pipelines and used to protect other piping or valve from getting damaged by the fragments and impurities in the system.
Features

1. Nice modeling,a pressure testing hole is preset on the body.
2. Convenient and quick use.It is possible,according to the user's requirement,to change the screwed plug on the body into a ball valve and let its outlet connected to sewage pipe,this can make it done to dredge sewage with pressure while not to remove the bonnet.
3. Filtering screens of different filtering accuracies can be provided according to the user's requirement,making the filtering screen cleaned more conveniently.
4. The fluid channel is designed scientifically and reasonably,smaller flowing resistance and greater flow.The total area of the mesh comes as 3-4times that of DN.
5. The telescopic type makes installation and removal more convenient.

The telescopic filter of water meter is an indispensable device in the medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to eliminate impurities in the medium, so as to protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable filter cartridge and put it in again after treatment. Therefore, it is convenient to use and maintain. Can be widely used in steam, air, water, oil and other media in the pipeline, protect the pipeline system equipment, pumps, valves from pipeline, rust, welding slag and other impurities from blocking and damage.

Material :

Application

Our Strainer are widely used in: independent heating systems; central heating systems; floor radiant heating systems; solar heating systems; heat pump systems; central air conditioning; heating boilers, etc.

Our products include hydraulic control valve series, balance valve series, soft seal hair series, multi-fun ction water pump control valve series, butterfly valve series, check valve series, groove valve series, fire special valve and stainless steel corrugated compensator, etc. A series of more than 1000 specifications.

y-type filter(reduced diameter)	flange thickness	flange outer circle	structure length	waterline height	waterline diameter	Height	screen diameter	filter length	filter aperture	center distance of filter	weight	length
DN50	12.5	156	201	2	102	185	48	85	2	4	4.5	205
DN65	12	175	217	2	123	210	60	95	2	4	6.5	220
DN80	14	190	247	2	134	242	68	116	2	4	8	250
DN100	14.5	209	293.5	2	157	265	82	137	2	4	10.5	298
DN125	20	240									14	315
DN150	24	280	335				113	165	2	5	19	350
DN200	24	335	405								34	410
DN250	24	405	460								58	525
DN300	24	460	520								80	605
DN350	25	520	580								98	627
DN400	27	580									126	630

company profile

Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
